Inter-individual variability? Non-compliance? noise?

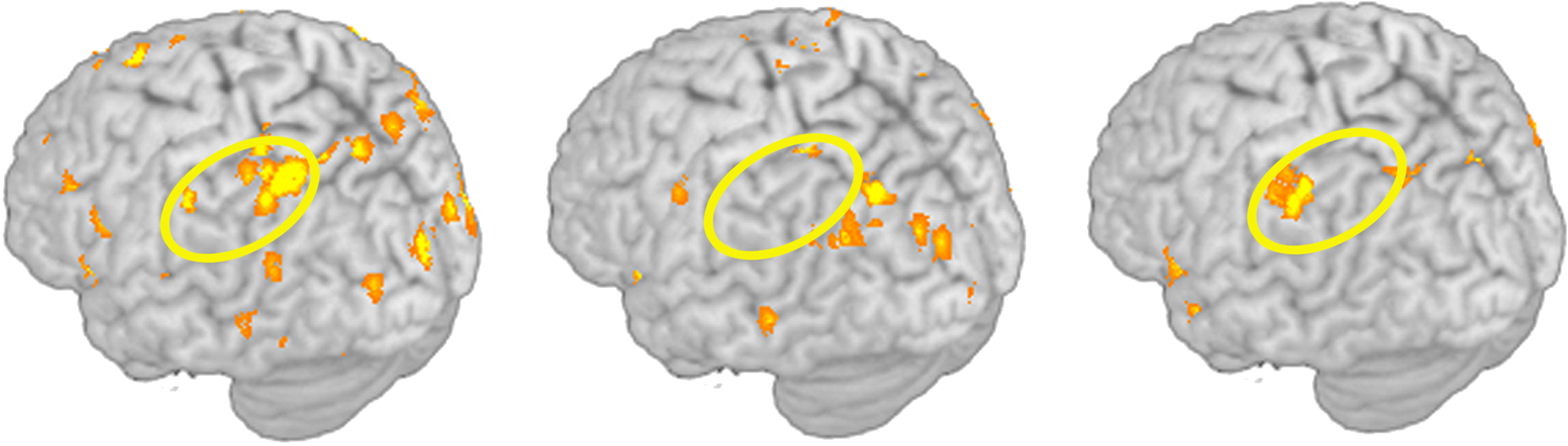

• three individual brains in a brain structure defined reference space
  (e.g., MNI)
• "diagnostic" voxels for distinguishing perception of tools and dwellings

Is brain structure alone an optimal reference
for inter-individual analysis of brain function?

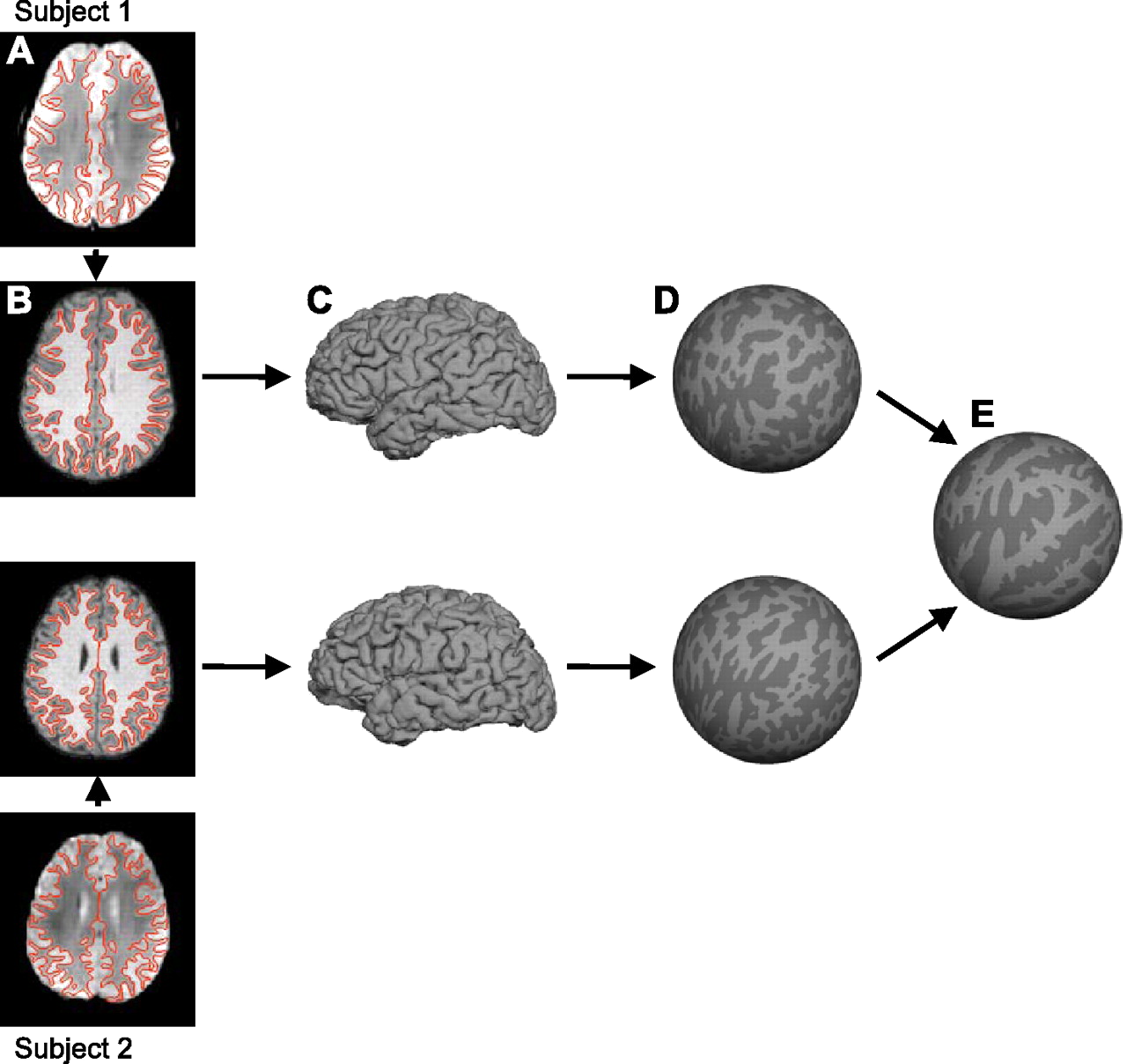

Common alignment algorithms

Compute a transformation of
2D/3D space

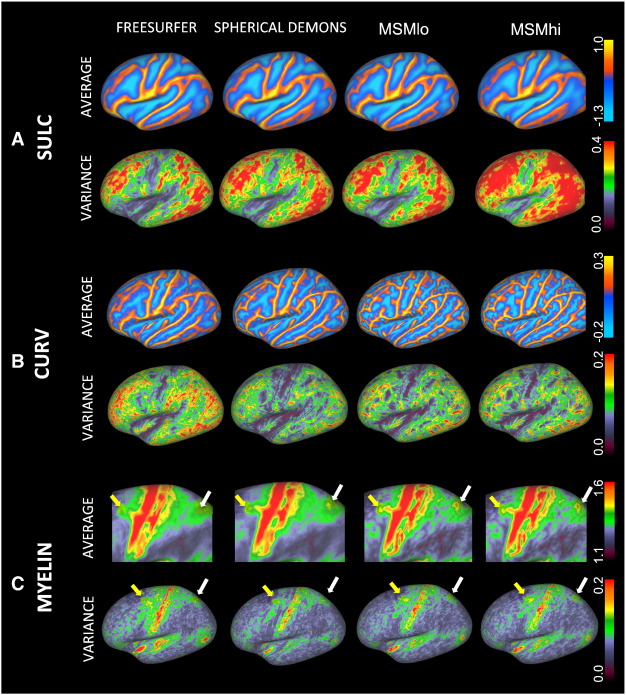

based on a single feature (e.g. image gray value),
or a low-dimensional feature vector (e.g. sulcal depth, curvature, myelin)

from Yeo, et al., Journal of Neurophysiology, 2011 and Robinson et al., NeuroImage, 2014

Are we comparing the right things?

from https://stnava.github.io/ANTsTalk

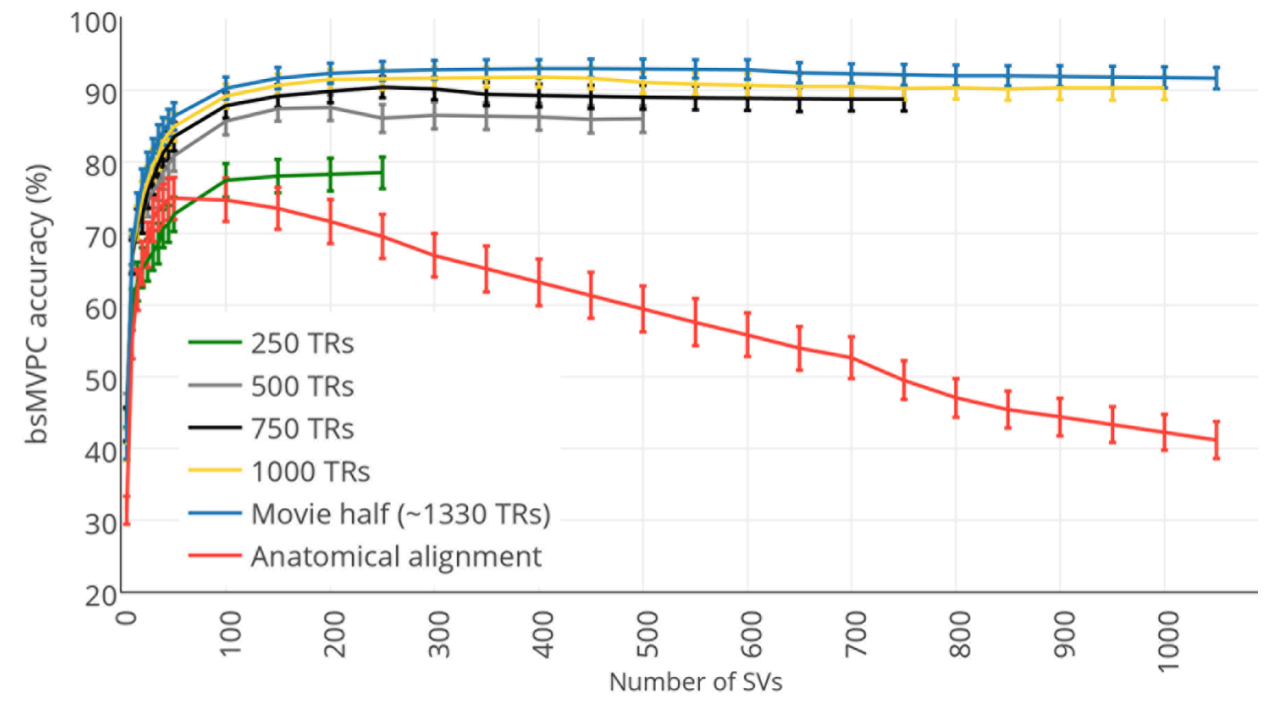

Functional hyperalignment

Compute a transformation of
a high-dimensional (representational) space
based on a high-dimensional feature vector, such as the functional response to watching a movie (>1000 time points)

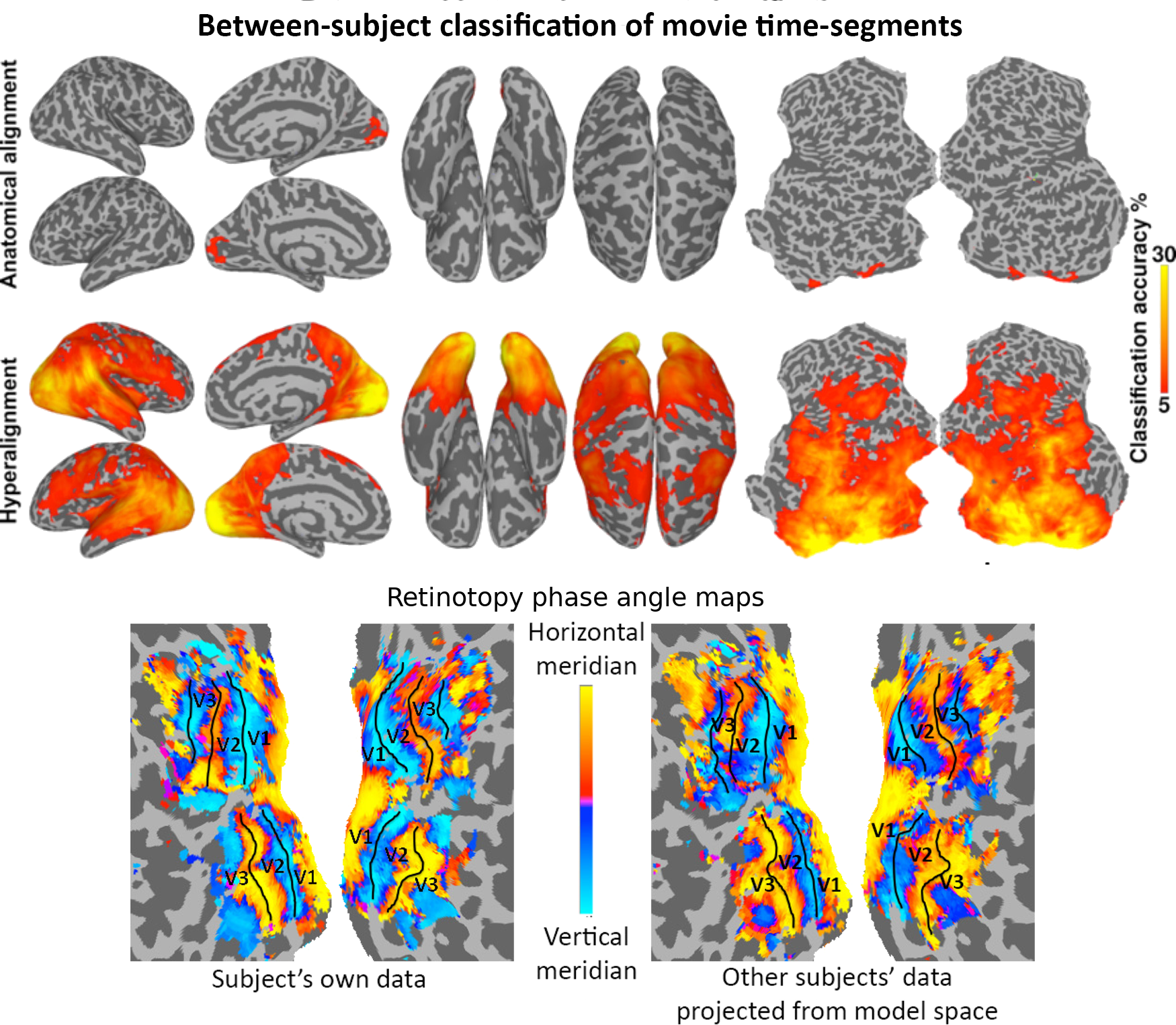

Predictive modeling of brain organization

Toy example

Four individual brains performing the same task
(time-locked activity assumed)

Four voxels, 4D representational space

Voxels selected independently for each brain
— no structural constraints necessary, albeit often desired

Hyperalignment: Normalization

Independent Z-scoring of time series (centered data)
only deviation from mean is considered

Hyperalignment: Toy example

Pick a reference subject/space:
first acquired, random, least motion, most variance, largest brain, ...

Hyperalignment: Toy example

Compute orthonormal transformation that minimizes distance in 4D between subjects; average of transformed data defines response profiles in common space

Hyperalignment: Toy example

Individual transformation matrices align a subject's voxel space with the common space; can be applied to other data (see later slide for requirements)

Hyperalignment: Toy example

Orthonormal transformation is reversible: easily project data from common space into an individual voxel space

Common reference of brain function

Common pattern of involment of brain networks in particular brain functions in real-life cognition.

Reconceptualization of inter-individual differences.

Potential to facilitate reliable clinical diagnostics.

Psychological approach

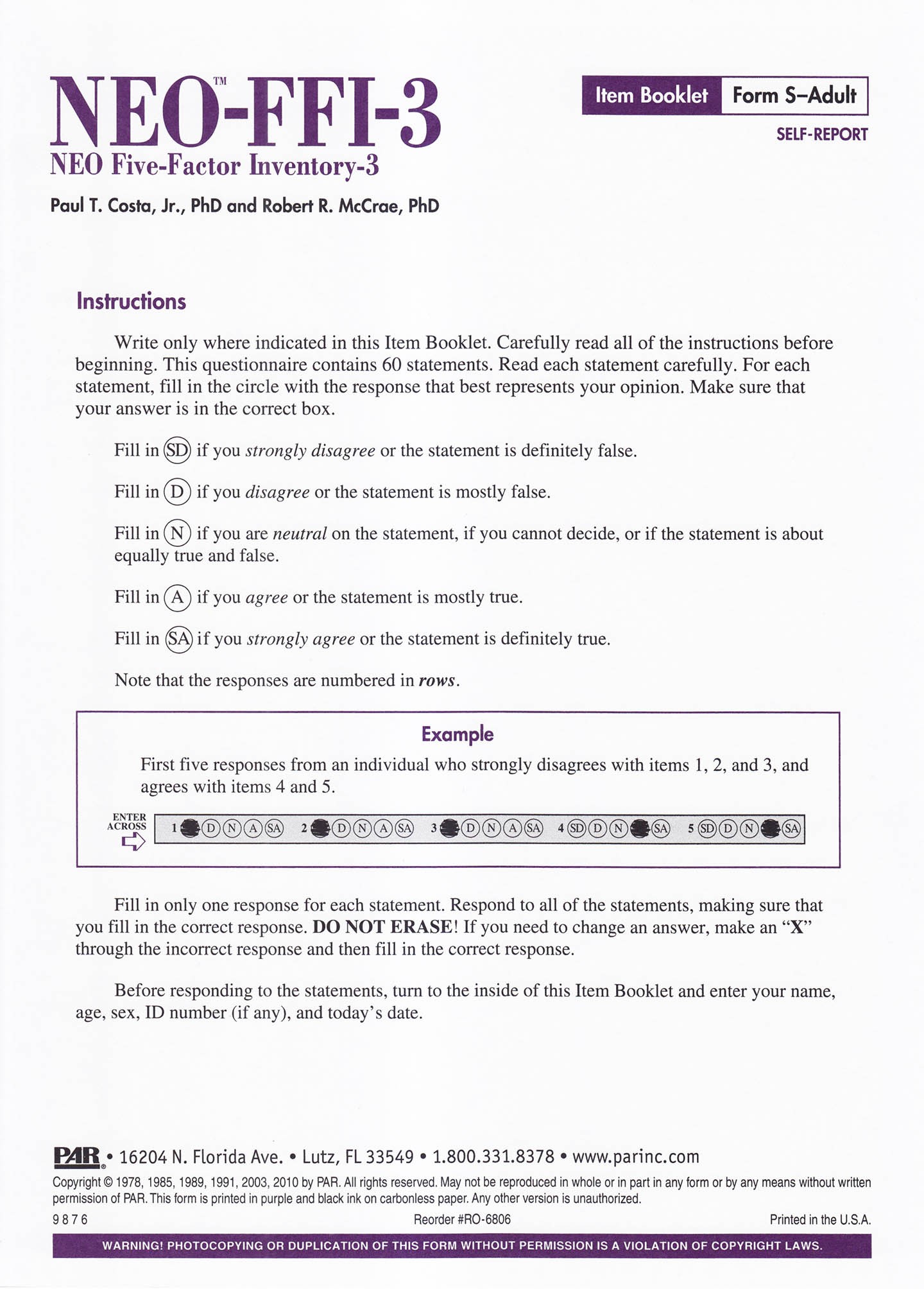

1. Record data from lots of sensors/questionnaires
2. Determine key markers
3. Acquire normative samples
4. Describe individual sample relative to the norm

Guesstimate magnitude of complexity

Too big, too risky, too expensive — for an individual lab/center

Role model for community potential

Concept

Give interested parties something to work on using their own resources and re-intergrate their contributions for another cycle

Open, high-quality, well-described "naturalistic" data

Resources and results towards building a functional brain atlas

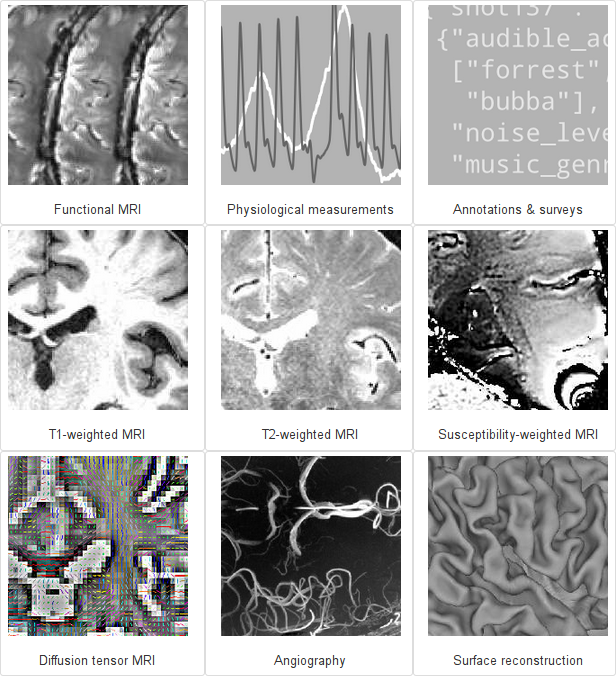

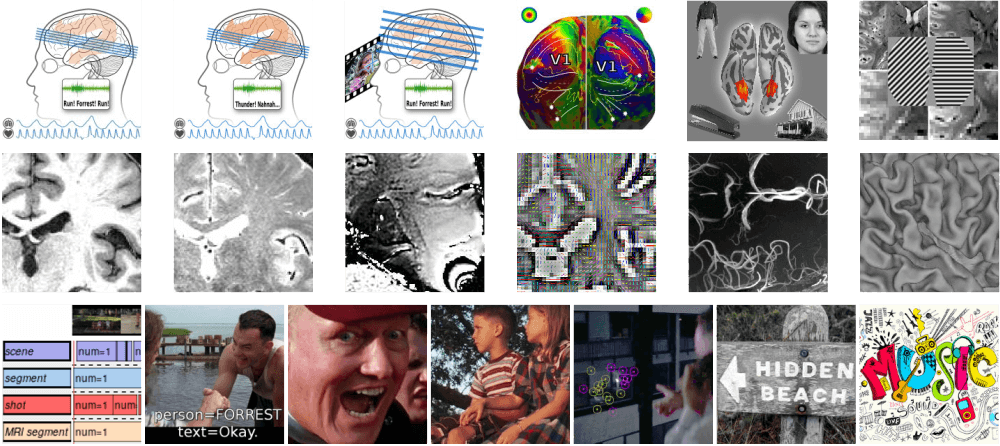

studyforrest.org

• open data resource
• versatile structural imaging data
• 10+ hours of fMRI per subject, various paradigms
• simultaneous physio data, eyetracking, auxiliary datasets
• versatile movie stimulus descriptions(every spoken word (grammar, semantics); music played; emotions; body contact; eye movements, saccade tactually argets, fixations; visible facial features; semantic conflict, space/time discontinuities)
• fantastic 3rd-party data hidden elsewhere
• DuPre, Hanke & Poline (2019). Nature abhors a paywall: How open science can realize the potential of naturalistic stimuli. PsyArXiv.

Interim conclusion after five years

Why is the open-science magic so weak?

Lessons from open-science

Isolated efforts are futile

Reporting standards

Nichols, Das, Eickhoff, Evans, Glatard, Hanke, Kriegeskorte, Milham, Poldrack, Poline, Proal, Thirion, Van Essen, White, Yeo . (2017). Best Practices in Data Analysis and Sharing in Neuroimaging using MRI. Nature Neuroscience. http://www.humanbrainmapping.org/cobidas

Standard data structures

Gorgolewski, Auer, Calhoun, Craddock, Duff, Flandin, Ghosh, Halchenko, Handwerker, Hanke, Keator, Li, Maumet, Michael, Nichols, Nichols, Poline, Rokem, Schaefer, Sochat, Turner, Varoquaux, Poldrack (2016). The Brain Imaging Data Structure: a protocol for standardizing and describing outputs of neuroimaging experiments. Scientific Data. http://bids.neuroimaging.io

Code review/release necessity

Eglen, Marwick, Halchenko, Hanke, Sufi, Gleeson, Silver. Davison, Lanyon, Abrams, Wachtler, Willshaw, Pouzat, Poline (2017). Towards standard practices for sharing computer code and programs in neuroscience. Nature Neuroscience.

Open-science strategy

Halchenko & Hanke (2015).

Four aspects to make science open “by design” and not as an after-thought. GigaScience.

Make your scientific output...

• F

  indable

• A

  ccessible

• I

  nteroperable

• R

  eusable

FAIR principles

F1

(Meta)data are assigned a globally unique and persistent identifier

F2

Data are described with rich metadata

F3

Metadata clearly and explicitly include the identifier of the data they describe

F4

(Meta)data are registered or indexed in a searchable resource

A1

(Meta)data are retrievable by their identifier using a standardised ... protocol

A1.1

The protocol is open, free, and universally implementable

A1.2

The protocol allows for an authentication and authorisation procedure

A2

Metadata are accessible, even when the data are no longer available

I1

(Meta)data use a formal, accessible ... language for knowledge representation.

I2

(Meta)data use vocabularies that follow FAIR principles

I3

(Meta)data include qualified references to other (meta)data

R1

Meta(data) are richly described with a plurality of accurate and relevant attributes

R1.1

(Meta)data are released with a clear and accessible data usage license

R1.2

(Meta)data are associated with detailed provenance

R1.3

(Meta)data meet domain-relevant community standards

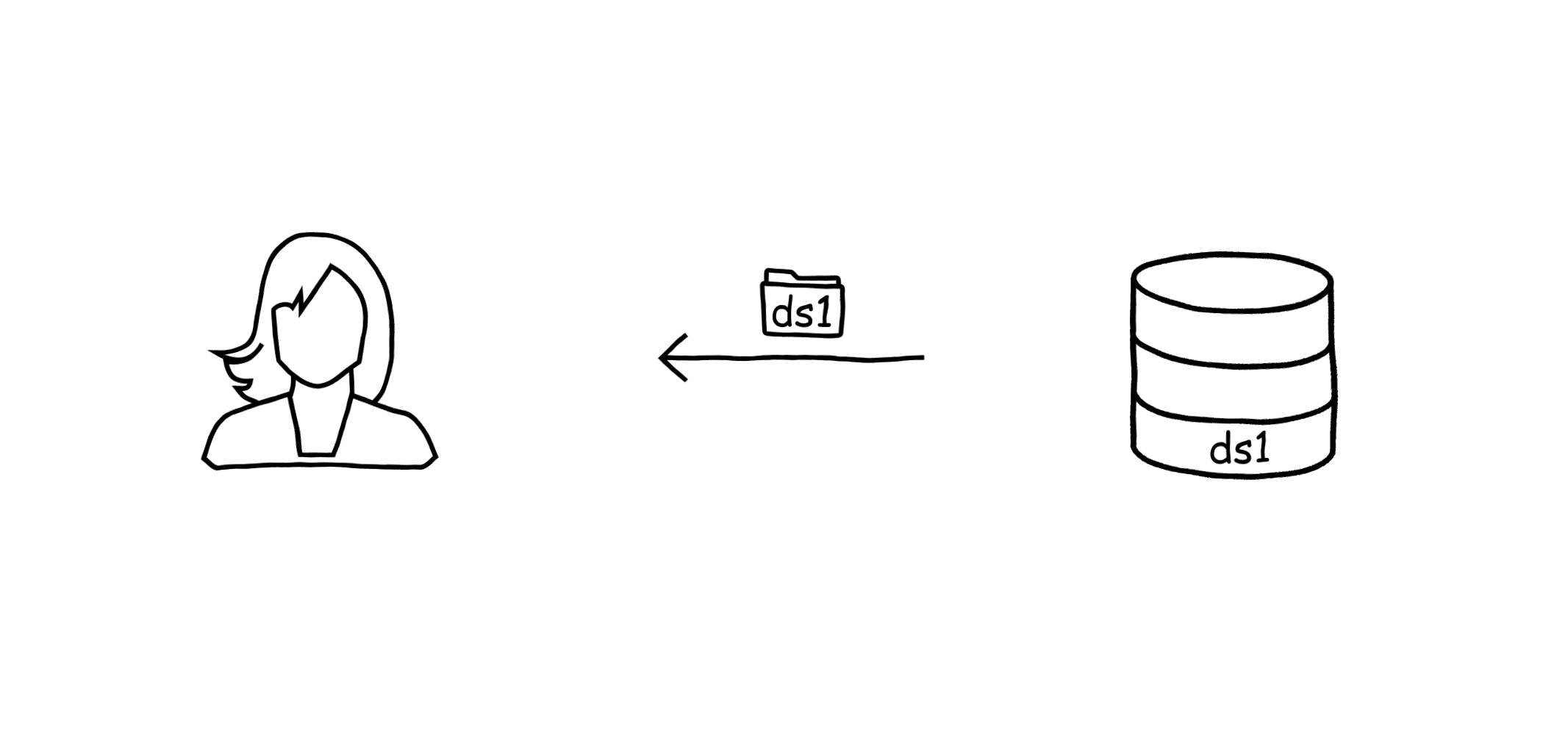

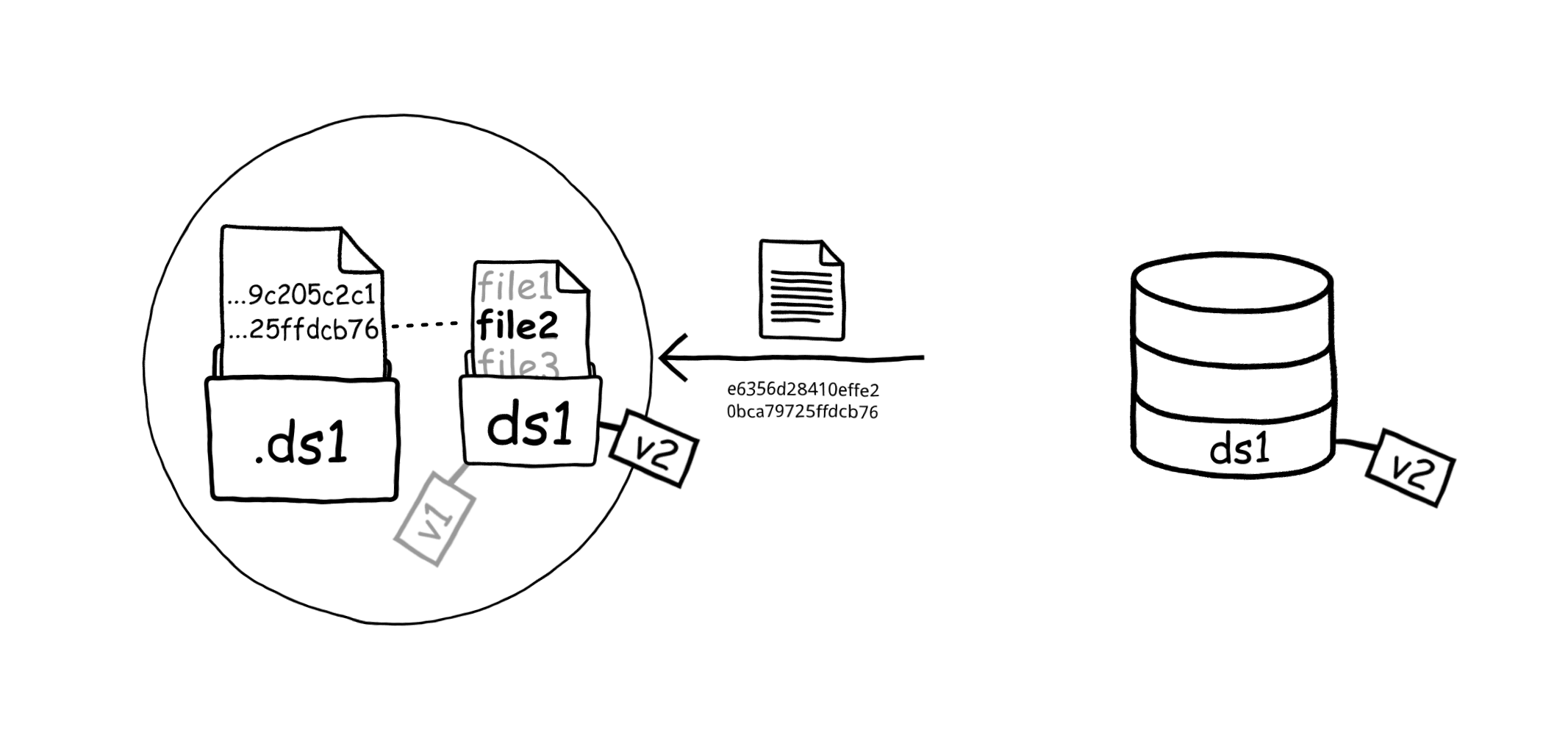

Install an existing dataset

request via standard URL,
(each dataset has a UUID, and each dataset location another UUID)

$ datalad install http://example.com/ds1

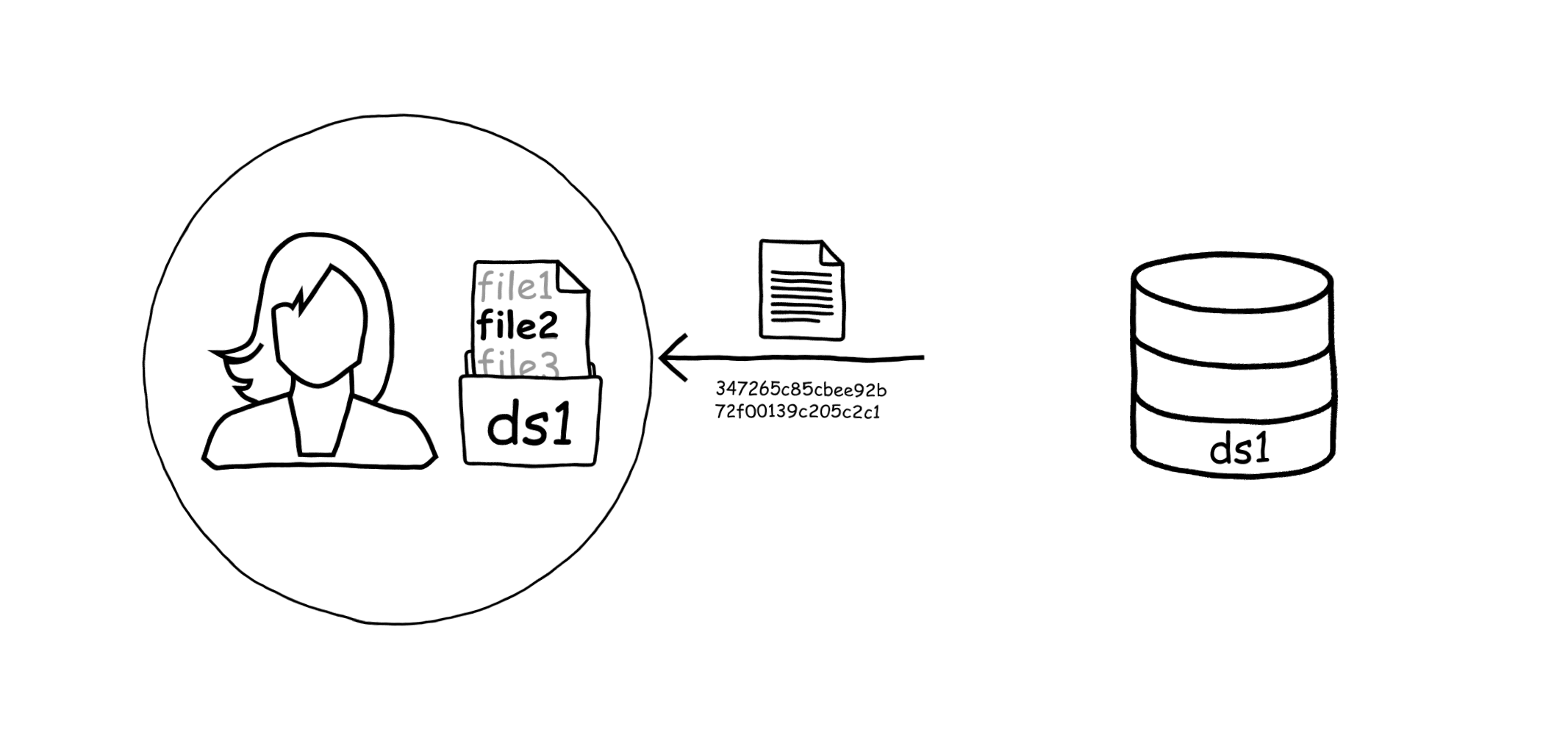

Obtain dataset content

request via user-friendly local file path, not internal ID,
regardless of remote actual storage solution properties

ds1/ $ datalad get file2

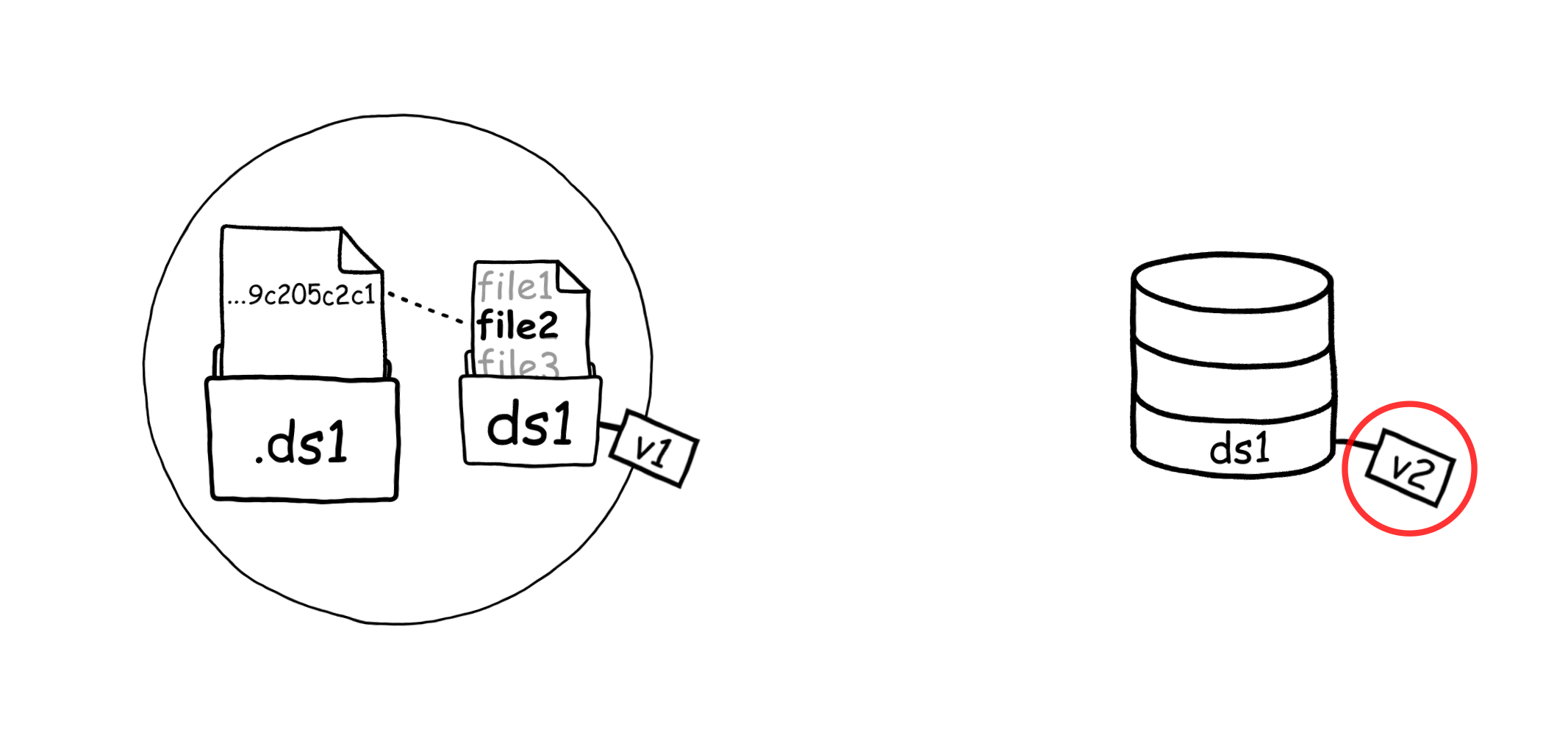

Tracking "remote" data evolution

ability to track any number of dataset "siblings",
in Git or non-Git data stores

ds1/ $ datalad update

Keep up-to-date

apply changes from default or selected sibling
while maintaining local data availability status

ds1/ $ datalad update --merge --reobtain-data

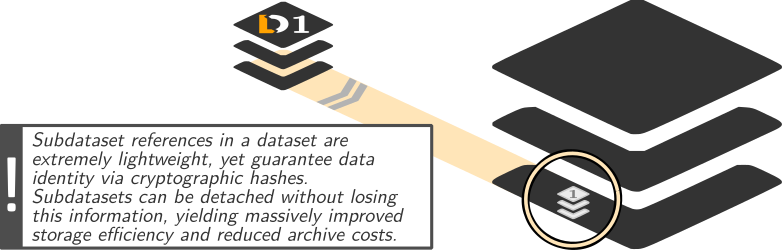

Dataset linkage

$ datalad install --dataset . --source http://example.com/ds inputs/rawdata

$ git diff HEAD~1
diff --git a/.gitmodules b/.gitmodules
new file mode 100644
index 0000000..c3370ba
--- /dev/null
+++ b/.gitmodules
@@ -0,0 +1,3 @@
+[submodule "inputs/rawdata"]
+       path = inputs/rawdata
+       url = http://example.com/importantds
diff --git a/inputs/rawdata b/inputs/rawdata
new file mode 160000
index 0000000..fabf852
--- /dev/null
+++ b/inputs/rawdata
@@ -0,0 +1 @@
+Subproject commit fabf8521130a13986bd6493cb33a70e580ce8572

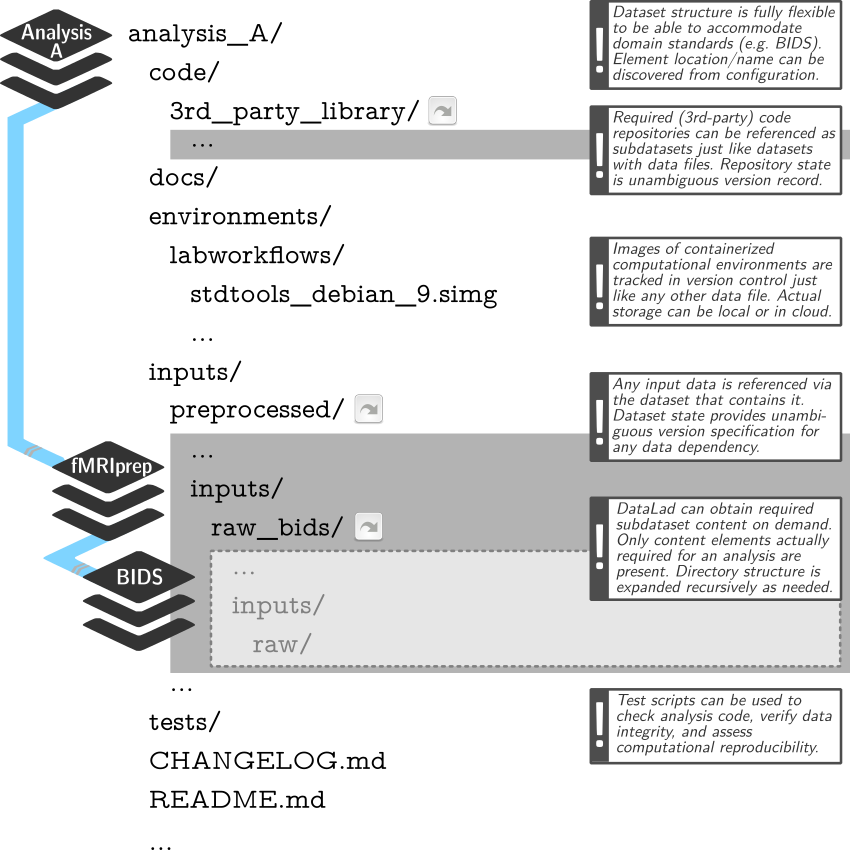

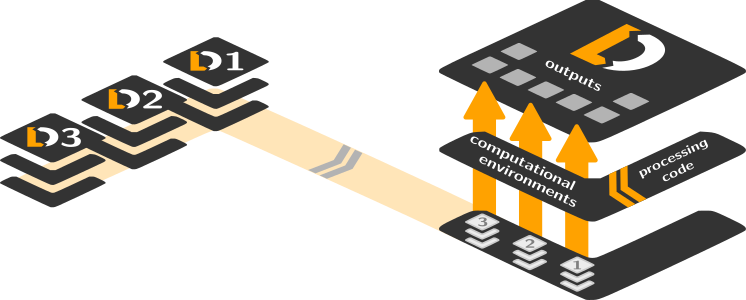

Combine modular dataset units

"actionable" links to subdatasets/files, seamless handling of dataset trees, each dataset can be individually managed by a different curator

"Complete" provenance capture

- for any local command

$ datalad run -m "Perform eye movement event detection"\
  --input 'inputs/raw_eyegaze/sub-*/beh/sub-*...tsv.gz' \
  --output 'sub-*' \
  bash code/compute_all.sh

- for any containerized app (can be tracked in the dataset too)

$ datalad containers-run -n nilearn \
  --input 'inputs/mri_aligned/sub-*/in_bold3Tp2/sub-*_task-avmovie_run-*_bold*' \
  --output 'sub-*/LC_timeseries_run-*.csv' \
  "bash -c 'for sub in sub-*; do for run in run-1 ... run-8;
     do python3 code/extract_lc_timeseries.py \$sub \$run; done; done'"

Complete capture of any input data, computational environment, code, parameters, and outputs possible — without sacrificing modularity

Enables enigma-style computing — analyze data that you don't have!

Metadata-based search for individual files

across datasets, without a DB (server)

$ datalad \
  -c datalad.search.index-egrep-documenttype=files \
  -f json_pp \
  search \
    bids.subject.sex:female \
    bids.type:t1 \
    bids.subject.age:24
{
  "dsid": "4842e188-7df5-11e6-8e6b-002590f97d84",
  "metadata": {
    "@context": {...},
    "bids": {...},
    "datalad_core": {
      "url": [
        "http://openneuro.s3.amazonaws.com/ds000008/ds000008_R1.1.0/...MZ92g",
        "http://openneuro.s3.amazonaws.com/ds000008/ds000008_R1.1.1/...UyanK",
        "http://openneuro.s3.amazonaws.com/ds000008/ds000008_R2.0.0/..._flBz"
      ]
    },
    "nifti1": {...},
  "parentds": "/tmp/mega/openfmri/ds000008",
  "path": "/tmp/mega/openfmri/ds000008/sub-15/anat/sub-15_T1w.nii.gz",
  "query_matched": {
    "bids.subject.age(years)": "24",
    "bids.subject.sex": "female",
    "bids.type": "T1"
  },
  "refcommit": "b18692ef1beefd88055bc0578b7567a8f4fdf8f9",
  "type": "file"
}
...


alternative output formats: JSON stream, custom, ...

Publish

• Supports a variety of consumer storage solutions (SSH-servers, GIN, DropBox, Box.com, Google, WEBDAV, bittorrent, IPFS, ...) via Git-annex
• Built-in support for strong data encryption
• Per-target configuration of accepted content, with configurable permissions and authorization mechanisms
• Export of dataset to FigShare and similar storage solutions
• Multiple redundant synchronized publication targets are supported (seemingly "publish 2TB on GitHub")

Datasets

• are lightweight (typically <<10MB, even when tracking TBs)
• can be attached to a traditional paper to enable direct access to original data, analysis code, computational environments and results
• have machine-readable metadata attached
• support redundant storage
• insure utility against failure of career, institutions, publishers

Extend DataLad

• Separate Python packages, anyone can develop their own
  https://github.com/datalad/datalad-extension-template
• Means for tailored solutions with narrower scope or specific audiences
• Extensions can provide additional commands, procedures, metadata extractors, webapps
• Available extensions
  • containers: support for containerized computational environments
  • crawler: track web resources in automated data distributions
  • neuroimaging: neuroimaging research data and workflow
  • hirni: imaging raw data management/entry, automatic BIDS-conversion
  • htcondor: cluster/cloud/grid-based remote code execution
  • webapp: REST API for querying/manipulating datasets
